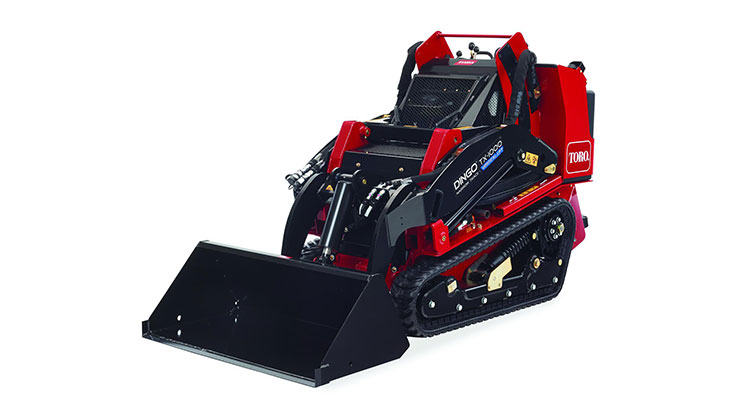

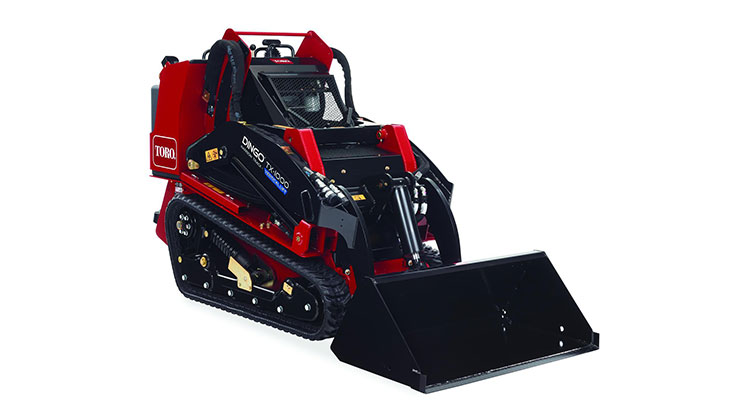

Dingo TX 1000 Narrow Track
Dingo® TX 1000 Narrow Track
- Toro-exclusive vertical lift loader arm design increases load capacity and greater reach at full height
- Rated operating capacity over 1,000-lbs to lift more than any compact utility loader on the market
- 81″ (206 cm) hinge pin height easily clears side of a 30-yard dumpster or one-ton truck for maximum jobsite productivity
- Exclusive traction control design on the Dingo TX 1000 Narrow Track is intuitive, easy to operate, and effortless
DESCRIPTION
As the market leader, Toro has taken another giant step in innovation, performance and versatility with the Dingo® TX 1000 Narrow Track.
Designed with vertical lift loader arms, its 1,000-lb. rated operating capacity delivers category-crushing performance that’s an industry game-changer. The Dingo TX 1000 also offers increased reach at full height for maximum jobsite productivity. And speaking of productivity, an 81″ (206 cm) hinge pin height allows the arms to clear the side of a 30-yard dumpster or one-ton truck. This lightweight, maneuverable machine packs unmatched strength and reach in a compact package for the ultimate working advantage.
SPECIFICATIONS
Auxillary Flow
15.2 gpm
Cooling System
Liquid Cooled
Ground Clearance
6.0″ (15 cm)
Ground Speed
3.8 mph (6.1 km/h)
Hinge Pin Height
81″ (206 cm)
Length
100.7″ (256 cm) w/bucket; 81.7″ (208 cm) w/o bucket
Reservoir Capacity
10 gallons (57.5 liters)
Tip Capacity
2,857 lbs (1,296 kg)
Track Width
5.9″ (15 cm)
Width
33.7″ (86 cm
Controls
Patented traction control design
Engine
24.9 HP (18.6 kW) Kubota® D1305 Diesel
Ground Pressure
5.4 PSI
Height
53.2″ (135 cm)
Hydraulic System Pressure
3,000 PSI
Operating Capacity
1,000 lbs (454 kg) (35% of Tip Capacity)
Steering Controls
Patented traction control design
Track
127.6″ x 5.9″ (324 cm x 15 cm)
Weight
2,785 lbs (1,263 kg)
ACCESSORIES
Compact Utility Loader Attachments
From earth moving, tilling and trenching to leveling, lifting, hauling and demolishing, all Toro Dingo models can be equipped with over 35 attachments to handle and endless amount of tasks.
See them all here:
